Product Overview

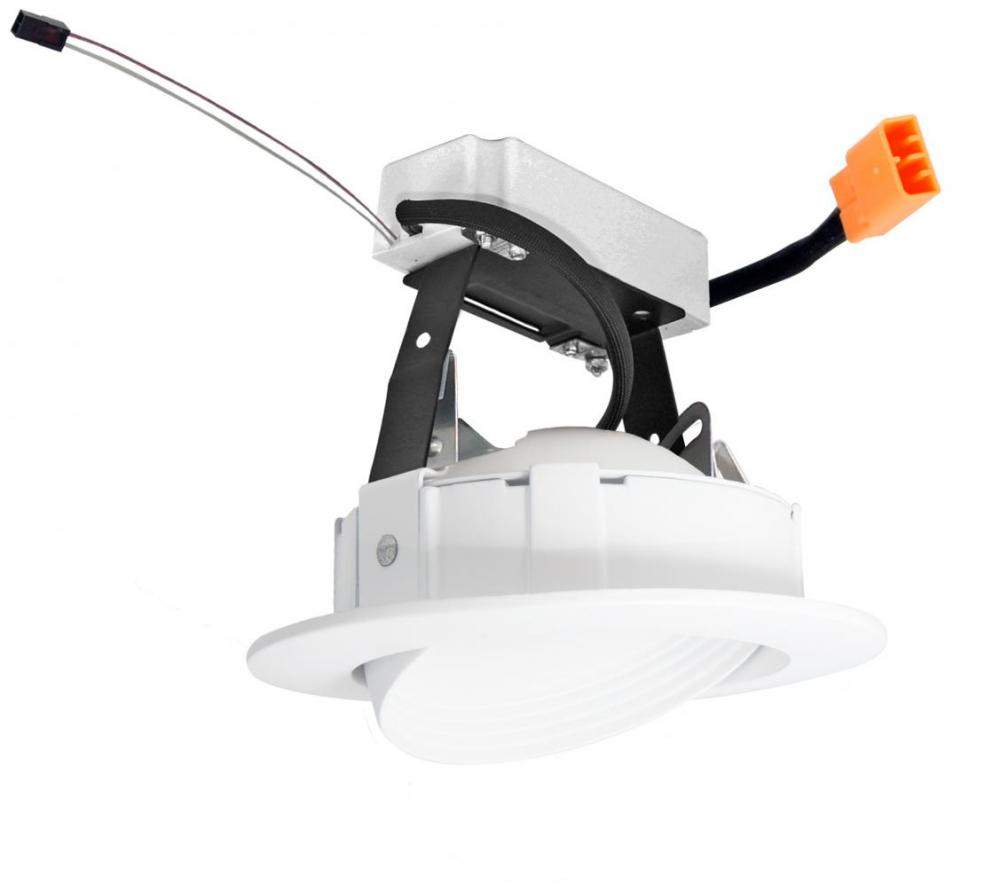

The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

Title 24

Refinement Options

Finish:

White

Voltage:

120 V/277 V

Bulb Hours:

50000

Bulb Type:

LED

Kelvin:

2700

Lumens / Light Output:

650

Beam Angle:

60°

Dimmable Type:

Triac/ELV/0-10V

Energy Star:

Yes

JA8:

Yes

Title 24:

Yes

Wattage:

10.5 W

0-10V/Triac/ELV Dimmable

120/277V Driver

25° Tilt

Compatible with EL490 Family (not for use in shallow housings)

Die-Cast construction provides lasting durability

Energy Star Certified

Life span of 50,000 hours L70

Lumens (Wattage): 650 lm (10.5W), 680 lm (10.5W), 710 lm (10.5W)

Title 24 JA8-2019 Compliant

Manufacturer Info

Manufactured By:

Elco Lighting
