Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Efficient

Damp Rated

Refinement Options

Voltage:

120 V/277 V

Bulb Type:

CFL

Energy Efficient:

Yes

Location Rating:

Damp Rated

Safety Rating:

cUL Approved

Wattage:

32 W

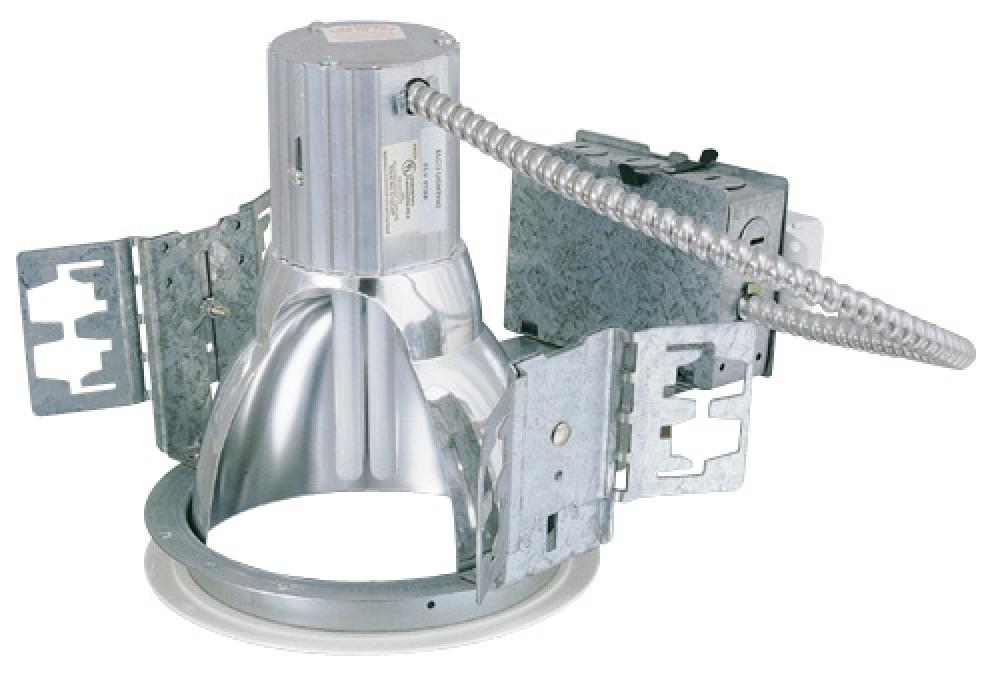

7 Vertical Architectural CFL Downlight

cUL Listed for damp location and for feed through

Energy efficient

Hanger bars not included, order CH26 or FB27 separately or use 1/2 EMT pipe

Housing adjusts 3/4 to accommodate various ceiling thickness

Housing equipped with vertically adjustable mounting brackets that accept 1/2 conduit or C-channels (CH26) or linear bar hangers (FB27)

Integral thermal protector guards against improper lamping

Junction box provided with removable access plates

Maximum (8) No. 12 AWG branch circuit conductors (4 in, 4 out)

Pre-wired junction box provided with 1/2 and 3/4 knockouts

Single wall construction

Manufacturer Info

Manufactured By:

Elco Lighting
