Product Overview

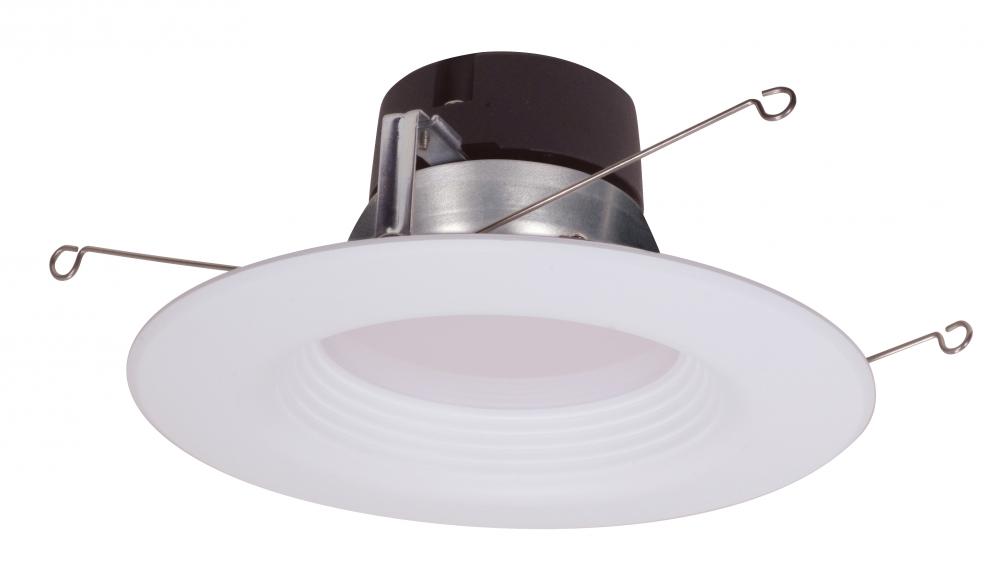

11.5 watt LED Downlight Retrofit; 5"-6"; 3000K; 120 volts; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Contemporary

Bulb Hours:

50000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.41

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

800L

Ship Carton Height:

8.07

Ship Carton Length:

9.06

Ship Carton Width:

3.94

Warranty:

5-Years

Amps:

0.096A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Spread:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

Carton Cubic Feet:

0.1667

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

T20 Non-Compliant - LPW <80

CEC Alt Sub:

S11801R1

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

69.57 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Mounting Procedure:

Ceiling

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.96

Quantity In Pack:

1

Rated For Vapor Tight Fixture:

No

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

11.5WLED/RDL/5-6/30K/120V

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Manufacturer Info

Manufactured By:

Satco Products Inc.
