Product Overview

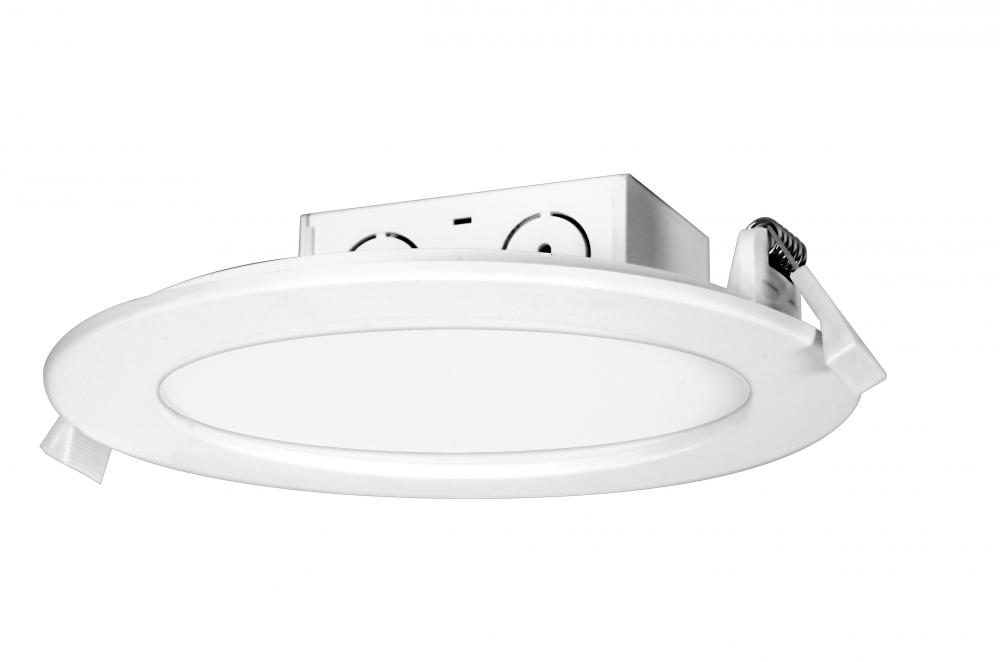

11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 4000K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Contemporary

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Contemporary

Bulb Hours:

40000

Bulb Kelvin:

Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.13

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

800L

Ship Carton Height:

7.09

Ship Carton Length:

8.460000000000001

Ship Carton Width:

2.64

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.097A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Spread:

100

CA Prop-65:

Lead

Carton Cubic Feet:

0.0916

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

6.4375 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Efficacy:

68.97 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Material:

Polybutylene Terephthalate (PBT) / Polyamide (PA) / Polycarbonate (PC)

Max Drywall Thickness:

3/4 in.

Minimum Compartment Size:

Diameter: 6.14 in. Height: 2.36 in.

Mounting Procedure:

Ceiling

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

1

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Safety Listing:

cULus - Classified

SDS class:

LED_Fixture

Short Description:

11.6WLED/DW/EL/5-6/40K/120V

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.78

Manufacturer Info

Manufactured By:

Satco Products Inc.
